Usage of the BendingTestAnalytical¶
BendingTestAnalytical is a simple model implemented for testing and training purpose.
from __future__ import annotations
import logging
from gemseo.core.discipline import Discipline
from numpy import array
from vimseo import EXAMPLE_RUNS_DIR
from vimseo.api import activate_logger
from vimseo.api import create_model
from vimseo.core.model_settings import IntegratedModelSettings
activate_logger(level=logging.INFO)
Introduction
BendingTestAnalytical is based on Bernoulli beam theory. It is configured on imposed displacement. It computes the reaction forces and the displacement and moment along the beam.
First, let's instantiate the model from the API:
model_name = "BendingTestAnalytical"
load_case = "Cantilever"
model_settings = IntegratedModelSettings(
directory_archive_root=EXAMPLE_RUNS_DIR / "archive/basic_usage",
directory_scratch_root=EXAMPLE_RUNS_DIR / "scratch/basic_usage",
cache_file_path=EXAMPLE_RUNS_DIR
/ f"caches/basic_usage/{model_name}_{load_case}_cache.hdf",
)
model = create_model(
model_name,
load_case,
model_options=model_settings,
)
model.set_cache(Discipline.CacheType.NONE)
model.archive_manager._accept_overwrite_job_dir = True
The model description can be accessed like this: Note that the load case contains the names of the boundary conditions, and the output variables to be plotted on x-y plots:
print(model.description)
Out:
Model BendingTestAnalytical: An analytical model for the bending of a parallelepipedic beam
Load case:
Load case Cantilever: A cantilever load case.
Boundary condition variables:
['imposed_dplt', 'relative_dplt_location']
Plot parameters:
{
"curves": []
}
Load:
Load(direction='', sign='', type='')
Default values:
Default geometrical variables:
{"height": [40.0], "length": [600.0], "width": [30.0]}
Default numerical variables:
{}
Default boundary conditions variables:
{"imposed_dplt": [-5.0], "relative_dplt_location": [1.0]}
Default material variables:
{"nu_p": [0.3], "young_modulus": [210000.0]}
model_inputs:
[
"length",
"width",
"height",
"imposed_dplt",
"relative_dplt_location",
"young_modulus",
"nu_p"
]
model_outputs:
[
"reaction_forces",
"maximum_dplt",
"dplt_grid",
"location_max_dplt",
"dplt",
"moment",
"moment_grid",
"dplt_at_force_location",
"error_code",
"model",
"load_case",
"description",
"job_name",
"persistent_result_files",
"n_cpus",
"date",
"cpu_time",
"user",
"machine",
"vims_git_version",
"directory_archive_root",
"directory_archive_job",
"directory_scratch_root",
"directory_scratch_job"
]

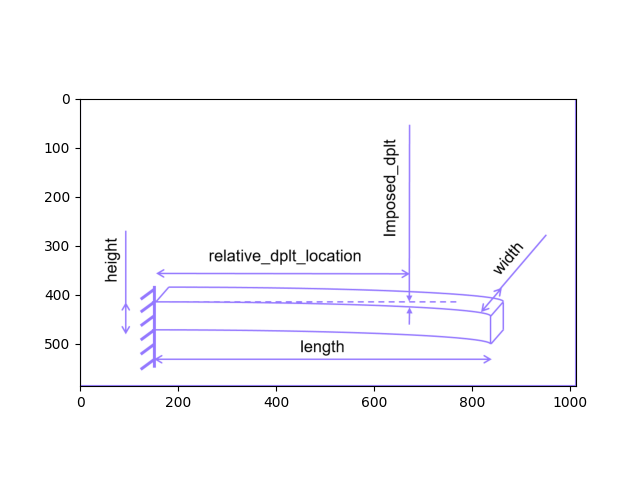

An illustration of the model can be shown:
model.show_image()
# and the path to the image accessed like this:
model.image_path
Out:
PosixPath('/home/sebastien.bocquet/PycharmProjects/vimseo/src/vimseo/problems/load_cases/Beam_Cantilever.png')
Specific image can also be associated with the load case:
model.load_case.show_image()
Executing the model with default parameters is straightforward:
model.execute()
