Usage of the SensitivityTool¶
SensitivityTool provides methods for sensitivity analysis. BendingTestAnalytical is used to illustrate the use of this tool.
Import the packages¶
%%
from __future__ import annotations
import logging
from vimseo import EXAMPLE_RUNS_DIR
from vimseo.api import activate_logger
from vimseo.api import create_model
from vimseo.core.model_settings import IntegratedModelSettings
from vimseo.tools.sensitivity.sensitivity import SensitivityTool
from vimseo.tools.space.space_tool import SpaceTool
activate_logger(level=logging.INFO)
Analysis definition¶
Let's start instantiate a model:
model_name = "BendingTestAnalytical"
load_case = "Cantilever"
model = create_model(
model_name,
load_case,
model_options=IntegratedModelSettings(
directory_archive_root=EXAMPLE_RUNS_DIR / "archive/sensitivity",
directory_scratch_root=EXAMPLE_RUNS_DIR / "scratch/sensitivity",
cache_file_path=EXAMPLE_RUNS_DIR
/ f"caches/sensitivity/{model_name}_{load_case}_cache.hdf",
),
)
Out:
INFO - 16:52:52: Found 40 entries in the cache file : /home/sebastien.bocquet/PycharmProjects/vimseo/docs/runnable_examples/model_runs/caches/sensitivity/BendingTestAnalytical_Cantilever_cache.hdf node : node
Create a parameter space¶
Based on the above, we create a parameter space. In this example, all the parameters are defined by Uniform distributions. The parameter spaces are built with the help of the SpaceTool. By default, a parameter space per load case is generated (if load_cases=None):
space_tool = SpaceTool(working_directory="SpaceTool_results")
print(space_tool.get_available_space_builders())
Out:
['FromCenterAndCov', 'FromMinAndMax', 'FromModelCenterAndCov', 'FromModelMinAndMax', 'SpaceBuilder']
First, consider all input variables of the model except "relative_dplt_location".
retained_variables = model.get_input_data_names()
retained_variables.remove("relative_dplt_location")
space_tool.execute(
distribution_name="OTTriangularDistribution",
space_builder_name="FromModelCenterAndCov",
variable_names=retained_variables,
use_default_values_as_center=True,
model=model,
cov=0.05,
)
Out:
INFO - 16:52:52: Working directory is /home/sebastien.bocquet/PycharmProjects/vimseo/docs/runnable_examples/09_sensitivity_analysis/SpaceTool_results
/home/sebastien.bocquet/PycharmProjects/vimseo/.tox/doc/lib/python3.11/site-packages/pydantic/main.py:209: DeprecationWarning:
Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)
SpaceToolResult(metadata=ToolResultMetadata(generic={'datetime': '11-05-2026_16-52-52', 'version': '0.1.7.dev11+g45528c259'}, misc={}, settings={'distribution_name': 'OTTriangularDistribution', 'space_builder_name': 'FromModelCenterAndCov', 'minimum_values': None, 'maximum_values': None, 'center_value_expr': '', 'use_default_values_as_center': True, 'variable_names': ['length', 'width', 'height', 'imposed_dplt', 'young_modulus', 'nu_p'], 'center_values': None, 'cov': 0.05, 'truncate_to_model_bounds': True, 'lower_bounds': None, 'upper_bounds': None, 'size': 1}, report={}, model=None), parameter_space=Parameter space:
+---------------+-------------+-------------------+-------------+-------+-----------------------------------------------------------+--------------------+
| Name | Lower bound | Value | Upper bound | Type | Initial distribution | Transformation(x)= |
+---------------+-------------+-------------------+-------------+-------+-----------------------------------------------------------+--------------------+
| young_modulus | 199500 | 210000.0000000001 | 220500 | float | Triangular(lower=199500.0, mode=210000.0, upper=220500.0) | Trunc(x) |
| nu_p | 0.285 | 0.3 | 0.315 | float | Triangular(lower=0.285, mode=0.3, upper=0.315) | x |
| length | 570 | 600.0000000000003 | 630 | float | Triangular(lower=570.0, mode=600.0, upper=630.0) | Trunc(x) |
| width | 28.5 | 30.00000000000004 | 31.5 | float | Triangular(lower=28.5, mode=30.0, upper=31.5) | Trunc(x) |
| height | 38 | 40.00000000000004 | 42 | float | Triangular(lower=38.0, mode=40.0, upper=42.0) | Trunc(x) |
| imposed_dplt | -5.25 | -5 | -4.75 | float | Triangular(lower=-5.25, mode=-5.0, upper=-4.75) | x |
+---------------+-------------+-------------------+-------------+-------+-----------------------------------------------------------+--------------------+)
Then, specifically for "relative_dplt_location".
space_tool.execute(
distribution_name="OTTriangularDistribution",
space_builder_name="FromCenterAndCov",
center_values={"relative_dplt_location": 0.9},
cov=0.05,
)
print(space_tool.parameter_space)
Out:
INFO - 16:52:52: Working directory is /home/sebastien.bocquet/PycharmProjects/vimseo/docs/runnable_examples/09_sensitivity_analysis/SpaceTool_results
/home/sebastien.bocquet/PycharmProjects/vimseo/.tox/doc/lib/python3.11/site-packages/pydantic/main.py:209: DeprecationWarning:
Conversion of an array with ndim > 0 to a scalar is deprecated, and will error in future. Ensure you extract a single element from your array before performing this operation. (Deprecated NumPy 1.25.)
Uncertain space:
+------------------------+-------------------------------------------------------------+--------------------+
| Name | Initial distribution | Transformation(x)= |
+------------------------+-------------------------------------------------------------+--------------------+
| young_modulus | Triangular(lower=199500.0, mode=210000.0, upper=220500.0) | Trunc(x) |
| nu_p | Triangular(lower=0.285, mode=0.3, upper=0.315) | x |
| length | Triangular(lower=570.0, mode=600.0, upper=630.0) | Trunc(x) |
| width | Triangular(lower=28.5, mode=30.0, upper=31.5) | Trunc(x) |
| height | Triangular(lower=38.0, mode=40.0, upper=42.0) | Trunc(x) |
| imposed_dplt | Triangular(lower=-5.25, mode=-5.0, upper=-4.75) | x |
| relative_dplt_location | Triangular(lower=0.855, mode=0.9, upper=0.9450000000000001) | x |
+------------------------+-------------------------------------------------------------+--------------------+
Using the SensitivityTool¶
First, the tool must be instantiated.
tool = SensitivityTool(working_directory="sensitivity_tool_results")
The :class:~.SensitivityTool must be executed to generate the Design of Experiments.
By default, it creates the sensitivity analysis through the |gemseo| API,
computes sensitivity analysis indices and,

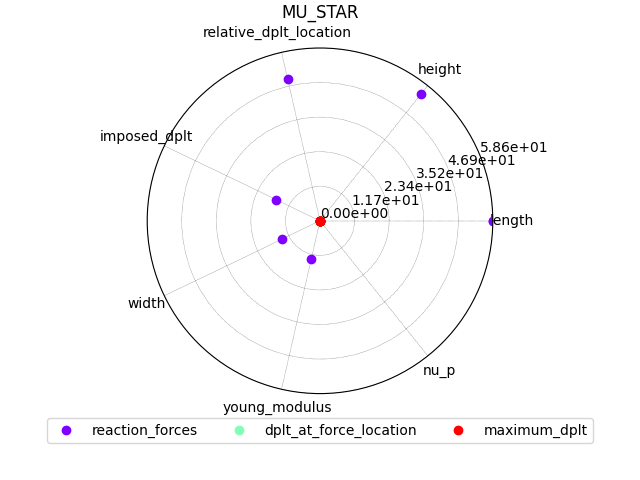

generates a radar plot with the results.
The execution returns either a dictionary or a pandas dataframe
(if argument as_df=True).
output_names = ["reaction_forces", "dplt_at_force_location", "maximum_dplt"]
sensitivity_indices = tool.execute(
model=model,
parameter_space=space_tool.parameter_space,

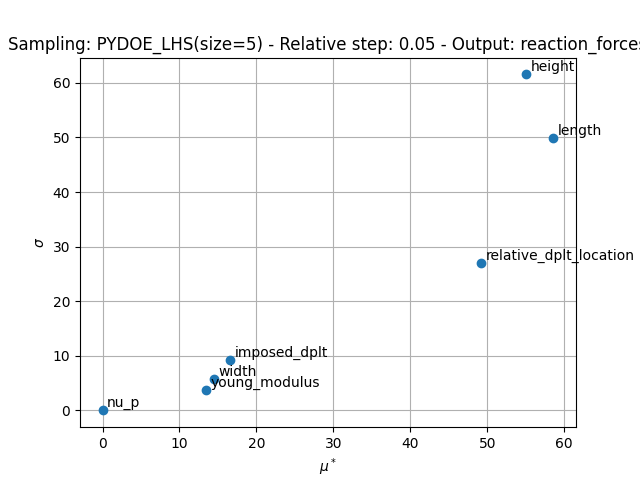

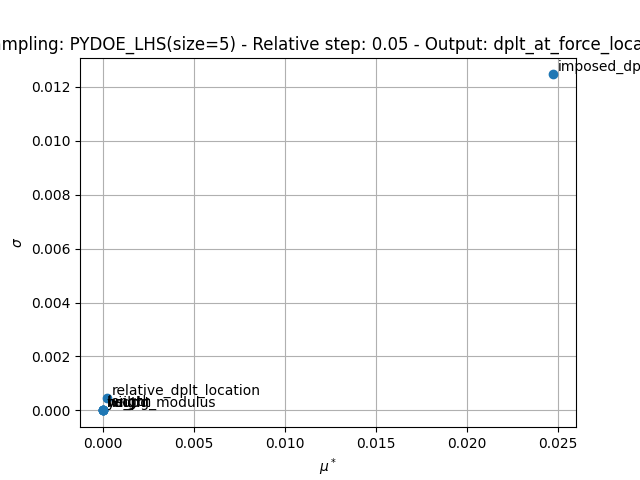

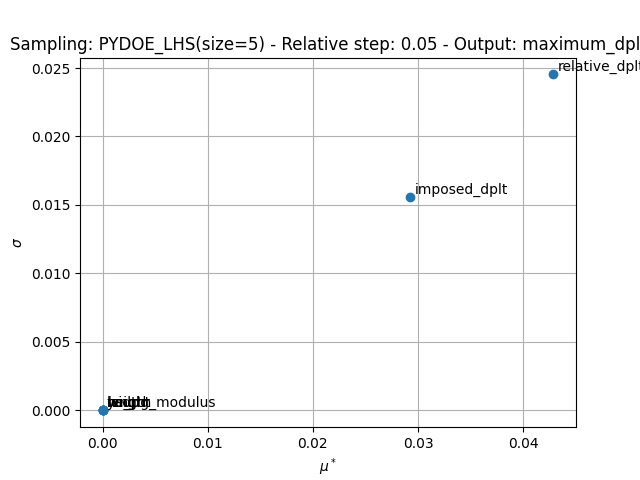

sensitivity_algo="MorrisAnalysis",
output_names=output_names,
n_replicates=5,
).indices
tool.save_results()
print(tool.result)
Out:
INFO - 16:52:52: Working directory is /home/sebastien.bocquet/PycharmProjects/vimseo/docs/runnable_examples/09_sensitivity_analysis/sensitivity_tool_results
WARNING - 16:52:52: No coupling in MDA, switching chain_linearize to True.
INFO - 16:52:52:
INFO - 16:52:52: *** Start MorrisAnalysisSamplingPhase execution ***
INFO - 16:52:52: MorrisAnalysisSamplingPhase
INFO - 16:52:52: Disciplines: Model BendingTestAnalytical: An analytical model for the bending of a parallelepipedic beam
INFO - 16:52:52:
INFO - 16:52:52: Load case:
INFO - 16:52:52: Load case Cantilever: A cantilever load case.
INFO - 16:52:52:
INFO - 16:52:52: Boundary condition variables:
INFO - 16:52:52: ['imposed_dplt', 'relative_dplt_location']
INFO - 16:52:52:
INFO - 16:52:52: Plot parameters:
INFO - 16:52:52: {
INFO - 16:52:52: "curves": []
INFO - 16:52:52: }
INFO - 16:52:52: Load:
INFO - 16:52:52: Load(direction='', sign='', type='')
INFO - 16:52:52:
INFO - 16:52:52: Default values:
INFO - 16:52:52:
INFO - 16:52:52: Default geometrical variables:
INFO - 16:52:52: {"height": [40.0], "length": [600.0], "width": [30.0]}
INFO - 16:52:52:
INFO - 16:52:52: Default numerical variables:
INFO - 16:52:52: {}
INFO - 16:52:52:
INFO - 16:52:52: Default boundary conditions variables:
INFO - 16:52:52: {"imposed_dplt": [-5.0], "relative_dplt_location": [1.0]}
INFO - 16:52:52:
INFO - 16:52:52: Default material variables:
INFO - 16:52:52: {"nu_p": [0.3], "young_modulus": [210000.0]}
INFO - 16:52:52: model_inputs:
INFO - 16:52:52: [
INFO - 16:52:52: "length",
INFO - 16:52:52: "width",
INFO - 16:52:52: "height",
INFO - 16:52:52: "imposed_dplt",
INFO - 16:52:52: "relative_dplt_location",
INFO - 16:52:52: "young_modulus",
INFO - 16:52:52: "nu_p"
INFO - 16:52:52: ]
INFO - 16:52:52: model_outputs:
INFO - 16:52:52: [
INFO - 16:52:52: "reaction_forces",
INFO - 16:52:52: "maximum_dplt",
INFO - 16:52:52: "dplt_grid",
INFO - 16:52:52: "location_max_dplt",
INFO - 16:52:52: "dplt",
INFO - 16:52:52: "moment",
INFO - 16:52:52: "moment_grid",
INFO - 16:52:52: "dplt_at_force_location",
INFO - 16:52:52: "error_code",
INFO - 16:52:52: "model",
INFO - 16:52:52: "load_case",
INFO - 16:52:52: "description",
INFO - 16:52:52: "job_name",
INFO - 16:52:52: "persistent_result_files",
INFO - 16:52:52: "n_cpus",
INFO - 16:52:52: "date",
INFO - 16:52:52: "cpu_time",
INFO - 16:52:52: "user",
INFO - 16:52:52: "machine",
INFO - 16:52:52: "vims_git_version",
INFO - 16:52:52: "directory_archive_root",
INFO - 16:52:52: "directory_archive_job",
INFO - 16:52:52: "directory_scratch_root",
INFO - 16:52:52: "directory_scratch_job"
INFO - 16:52:52: ]
INFO - 16:52:52: MDO formulation: MDF
INFO - 16:52:52: Running the algorithm MorrisDOE:
INFO - 16:52:52: 2%|▎ | 1/40 [00:00<00:00, 64.82 it/sec]
INFO - 16:52:52: 5%|▌ | 2/40 [00:00<00:00, 84.15 it/sec]
INFO - 16:52:52: 8%|▊ | 3/40 [00:00<00:00, 94.38 it/sec]
INFO - 16:52:52: 10%|█ | 4/40 [00:00<00:00, 100.12 it/sec]
INFO - 16:52:52: 12%|█▎ | 5/40 [00:00<00:00, 104.41 it/sec]
INFO - 16:52:52: 15%|█▌ | 6/40 [00:00<00:00, 107.79 it/sec]
INFO - 16:52:52: 18%|█▊ | 7/40 [00:00<00:00, 110.36 it/sec]
INFO - 16:52:52: 20%|██ | 8/40 [00:00<00:00, 111.70 it/sec]
INFO - 16:52:52: 22%|██▎ | 9/40 [00:00<00:00, 112.98 it/sec]
INFO - 16:52:52: 25%|██▌ | 10/40 [00:00<00:00, 114.07 it/sec]
INFO - 16:52:52: 28%|██▊ | 11/40 [00:00<00:00, 114.90 it/sec]
INFO - 16:52:52: 30%|███ | 12/40 [00:00<00:00, 115.85 it/sec]
INFO - 16:52:52: 32%|███▎ | 13/40 [00:00<00:00, 116.36 it/sec]
INFO - 16:52:52: 35%|███▌ | 14/40 [00:00<00:00, 116.79 it/sec]
INFO - 16:52:52: 38%|███▊ | 15/40 [00:00<00:00, 116.90 it/sec]
INFO - 16:52:52: 40%|████ | 16/40 [00:00<00:00, 117.17 it/sec]
INFO - 16:52:52: 42%|████▎ | 17/40 [00:00<00:00, 117.21 it/sec]
INFO - 16:52:52: 45%|████▌ | 18/40 [00:00<00:00, 117.51 it/sec]
INFO - 16:52:52: 48%|████▊ | 19/40 [00:00<00:00, 117.62 it/sec]
INFO - 16:52:52: 50%|█████ | 20/40 [00:00<00:00, 117.79 it/sec]
INFO - 16:52:52: 52%|█████▎ | 21/40 [00:00<00:00, 117.93 it/sec]
INFO - 16:52:52: 55%|█████▌ | 22/40 [00:00<00:00, 118.22 it/sec]
INFO - 16:52:52: 57%|█████▊ | 23/40 [00:00<00:00, 118.26 it/sec]
INFO - 16:52:52: 60%|██████ | 24/40 [00:00<00:00, 118.20 it/sec]
INFO - 16:52:52: 62%|██████▎ | 25/40 [00:00<00:00, 117.73 it/sec]
INFO - 16:52:52: 65%|██████▌ | 26/40 [00:00<00:00, 117.38 it/sec]
INFO - 16:52:52: 68%|██████▊ | 27/40 [00:00<00:00, 116.89 it/sec]
INFO - 16:52:52: 70%|███████ | 28/40 [00:00<00:00, 116.82 it/sec]
INFO - 16:52:52: 72%|███████▎ | 29/40 [00:00<00:00, 116.74 it/sec]
INFO - 16:52:52: 75%|███████▌ | 30/40 [00:00<00:00, 116.68 it/sec]
INFO - 16:52:52: 78%|███████▊ | 31/40 [00:00<00:00, 116.73 it/sec]
INFO - 16:52:52: 80%|████████ | 32/40 [00:00<00:00, 116.82 it/sec]
INFO - 16:52:52: 82%|████████▎ | 33/40 [00:00<00:00, 117.03 it/sec]
INFO - 16:52:52: 85%|████████▌ | 34/40 [00:00<00:00, 117.03 it/sec]
INFO - 16:52:52: 88%|████████▊ | 35/40 [00:00<00:00, 117.07 it/sec]
INFO - 16:52:52: 90%|█████████ | 36/40 [00:00<00:00, 117.29 it/sec]
INFO - 16:52:52: 92%|█████████▎| 37/40 [00:00<00:00, 117.44 it/sec]
INFO - 16:52:52: 95%|█████████▌| 38/40 [00:00<00:00, 117.51 it/sec]
INFO - 16:52:52: 98%|█████████▊| 39/40 [00:00<00:00, 117.65 it/sec]
INFO - 16:52:52: 100%|██████████| 40/40 [00:00<00:00, 117.86 it/sec]
INFO - 16:52:52: *** End MorrisAnalysisSamplingPhase execution (time: 0:00:00.346206) ***
/home/sebastien.bocquet/PycharmProjects/vimseo/.tox/doc/lib/python3.11/site-packages/gemseo/uncertainty/sensitivity/morris_analysis.py:294: RuntimeWarning:
invalid value encountered in divide
INFO - 16:52:52: Saving result to /home/sebastien.bocquet/PycharmProjects/vimseo/docs/runnable_examples/09_sensitivity_analysis/sensitivity_tool_results/SensitivityTool_result.hdf5
INFO - 16:52:52: PICKLE fallback: key='analysis', type=<class 'gemseo.uncertainty.sensitivity.morris_analysis.MorrisAnalysis'>, value=<gemseo.uncertainty.sensitivity.morris_analysis.MorrisAnalysis object at 0x7f270463fb50>
Results of a sensitivity analysis.
{
"generic": {
"datetime": "11-05-2026_16-52-52",
"version": "0.1.7.dev11+g45528c259"
},
"misc": {},
"model": {
"curves": [
[
"dplt_grid",
"dplt"
],
[
"moment_grid",
"moment"
]
],
"dataflow": {
"PostBendingTestAnalytical_Cantilever": {
"inputs": [
"dplt",
"dplt_grid",
"moment",
"moment_grid",
"imposed_dplt_location",
"reaction_forces"
],
"outputs": [
"reaction_forces",
"maximum_dplt",
"dplt_grid",
"location_max_dplt",
"dplt",
"moment",
"moment_grid",
"dplt_at_force_location",
"error_code"
]
},
"PreBendingTestAnalytical_Cantilever": {
"inputs": [
"length",
"width",
"height",
"imposed_dplt",
"relative_dplt_location",
"young_modulus",
"nu_p"
],
"outputs": [
"imposed_dplt_location",
"quadratic_moment",
"reaction_forces",
"moment",
"moment_grid",
"solver",
"boundary"
]
},
"RunBendingTestAnalytical": {
"inputs": [
"imposed_dplt_location",
"quadratic_moment",
"reaction_forces",
"moment",
"moment_grid",
"solver",
"boundary",
"length",
"width",
"height",
"imposed_dplt",
"relative_dplt_location",
"young_modulus",
"nu_p"
],
"outputs": [
"dplt",
"dplt_grid",
"moment",
"moment_grid",
"imposed_dplt_location",
"reaction_forces"
]
},
"model_inputs": [
"length",
"width",
"height",
"imposed_dplt",
"relative_dplt_location",
"young_modulus",
"nu_p"
],
"model_outputs": [
"reaction_forces",
"maximum_dplt",
"dplt_grid",
"location_max_dplt",
"dplt",
"moment",
"moment_grid",
"dplt_at_force_location",
"error_code",
"model",
"load_case",
"description",
"job_name",
"persistent_result_files",
"n_cpus",
"date",
"cpu_time",
"user",
"machine",
"vims_git_version",
"directory_archive_root",
"directory_archive_job",
"directory_scratch_root",
"directory_scratch_job"
],
"subroutine_names": []
},
"default_inputs": {
"boundary conditions variables": {
"imposed_dplt": [
-5.0
],
"relative_dplt_location": [
1.0
]
},
"geometrical variables": {
"height": [
40.0
],
"length": [
600.0
],
"width": [
30.0
]
},
"material variables": {
"nu_p": [
0.3
],
"young_modulus": [
210000.0
]
},
"numerical variables": {}
},
"load_case": {
"bc_variable_names": [
"imposed_dplt",
"relative_dplt_location"
],
"domain": "Beam",
"load": {
"direction": "",
"sign": "",
"type": ""
},
"name": "Cantilever",
"plot_parameters": {
"curves": []
},
"summary": "A cantilever load case."
},
"name": "BendingTestAnalytical",
"summary": " An analytical model for the bending of a parallelepipedic beam",
"verbose": false
},
"report": {
"output_names": [
"reaction_forces",
"dplt_at_force_location",
"maximum_dplt"
]
},
"settings": {
"n_replicates": 5,
"n_samples": 0,
"output_names": [
"reaction_forces",
"dplt_at_force_location",
"maximum_dplt"
],
"sensitivity_algo": "MorrisAnalysis"
}
}
Input variables by decreasing order of influence:
For output reaction_forces: ['length', 'height', 'relative_dplt_location', 'imposed_dplt', 'width', 'young_modulus', 'nu_p'].
For output dplt_at_force_location: ['imposed_dplt', 'relative_dplt_location', 'length', 'height', 'width', 'young_modulus', 'nu_p'].
For output maximum_dplt: ['relative_dplt_location', 'imposed_dplt', 'length', 'width', 'height', 'young_modulus', 'nu_p'].
Sensitivity indices:
Index mu
reaction_forces: [{'young_modulus': array([-13.43064013]), 'nu_p': array([0.]), 'length': array([58.60982709]), 'width': array([-14.47192315]), 'height': array([-13.80474496]), 'imposed_dplt': array([16.55844226]), 'relative_dplt_location': array([49.1739949])}]
dplt_at_force_location: [{'young_modulus': array([-1.42108547e-15]), 'nu_p': array([0.]), 'length': array([-1.01049536e-05]), 'width': array([-7.10542736e-16]), 'height': array([1.95399252e-15]), 'imposed_dplt': array([0.02475083]), 'relative_dplt_location': array([-0.00022711])}]
maximum_dplt: [{'young_modulus': array([-1.24344979e-15]), 'nu_p': array([0.]), 'length': array([9.25911667e-06]), 'width': array([-8.8817842e-16]), 'height': array([1.59872116e-15]), 'imposed_dplt': array([0.02923962]), 'relative_dplt_location': array([0.04288046])}]
Index mu_star
reaction_forces: [{'young_modulus': array([13.43064013]), 'nu_p': array([0.]), 'length': array([58.60982709]), 'width': array([14.47192315]), 'height': array([55.10011756]), 'imposed_dplt': array([16.55844226]), 'relative_dplt_location': array([49.1739949])}]
dplt_at_force_location: [{'young_modulus': array([1.42108547e-15]), 'nu_p': array([0.]), 'length': array([1.24849806e-05]), 'width': array([1.77635684e-15]), 'height': array([1.95399252e-15]), 'imposed_dplt': array([0.02475083]), 'relative_dplt_location': array([0.00024446])}]
maximum_dplt: [{'young_modulus': array([1.24344979e-15]), 'nu_p': array([0.]), 'length': array([1.94426342e-05]), 'width': array([1.59872116e-15]), 'height': array([1.59872116e-15]), 'imposed_dplt': array([0.02923962]), 'relative_dplt_location': array([0.04288046])}]
Index sigma
reaction_forces: [{'young_modulus': array([3.67260496]), 'nu_p': array([0.]), 'length': array([49.90184971]), 'width': array([5.76286543]), 'height': array([61.55049071]), 'imposed_dplt': array([9.26333405]), 'relative_dplt_location': array([26.92516706])}]
dplt_at_force_location: [{'young_modulus': array([1.64732556e-15]), 'nu_p': array([0.]), 'length': array([2.32090004e-05]), 'width': array([1.8966301e-15]), 'height': array([1.42108547e-15]), 'imposed_dplt': array([0.01246174]), 'relative_dplt_location': array([0.00045632])}]
maximum_dplt: [{'young_modulus': array([4.35116786e-16]), 'nu_p': array([0.]), 'length': array([3.15207404e-05]), 'width': array([2.10181376e-15]), 'height': array([1.62805794e-15]), 'imposed_dplt': array([0.01555085]), 'relative_dplt_location': array([0.0245328])}]
Index relative_sigma
reaction_forces: [{'young_modulus': array([0.27344973]), 'nu_p': array([nan]), 'length': array([0.85142462]), 'width': array([0.39821006]), 'height': array([1.11706641]), 'imposed_dplt': array([0.5594327]), 'relative_dplt_location': array([0.54754891])}]
dplt_at_force_location: [{'young_modulus': array([1.15920231]), 'nu_p': array([nan]), 'length': array([1.85895367]), 'width': array([1.06770783]), 'height': array([0.72727273]), 'imposed_dplt': array([0.50348774]), 'relative_dplt_location': array([1.86663484])}]
maximum_dplt: [{'young_modulus': array([0.34992711]), 'nu_p': array([nan]), 'length': array([1.62121758]), 'width': array([1.3146844]), 'height': array([1.01835015]), 'imposed_dplt': array([0.53184165]), 'relative_dplt_location': array([0.57212065])}]
Index min
reaction_forces: [{'young_modulus': array([9.2905588]), 'nu_p': array([0.]), 'length': array([24.01397044]), 'width': array([8.21014976]), 'height': array([23.25186439]), 'imposed_dplt': array([8.39985622]), 'relative_dplt_location': array([26.91142661])}]
dplt_at_force_location: [{'young_modulus': array([0.]), 'nu_p': array([0.]), 'length': array([2.84046129e-08]), 'width': array([8.8817842e-16]), 'height': array([0.]), 'imposed_dplt': array([0.01297183]), 'relative_dplt_location': array([9.02381733e-06])}]
maximum_dplt: [{'young_modulus': array([8.8817842e-16]), 'nu_p': array([0.]), 'length': array([1.89089638e-06]), 'width': array([0.]), 'height': array([0.]), 'imposed_dplt': array([0.01527829]), 'relative_dplt_location': array([0.0216497])}]
Index max
reaction_forces: [{'young_modulus': array([18.38485335]), 'nu_p': array([0.]), 'length': array([157.00575767]), 'width': array([22.81785918]), 'height': array([103.23843151]), 'imposed_dplt': array([31.42358486]), 'relative_dplt_location': array([83.35034553])}]
dplt_at_force_location: [{'young_modulus': array([4.4408921e-15]), 'nu_p': array([0.]), 'length': array([5.63319641e-05]), 'width': array([3.55271368e-15]), 'height': array([3.55271368e-15]), 'imposed_dplt': array([0.04443667]), 'relative_dplt_location': array([0.00113868])}]
maximum_dplt: [{'young_modulus': array([1.77635684e-15]), 'nu_p': array([0.]), 'length': array([7.17543771e-05]), 'width': array([4.4408921e-15]), 'height': array([3.55271368e-15]), 'imposed_dplt': array([0.054728]), 'relative_dplt_location': array([0.07790166])}]
The MorrisAnalysis method is used by default for the sensitivity analysis,
but there is also the option to use 'CorrelationAnalysis' or 'SobolAnalysis'
Plot the sensitivity of reaction_forces to the model inputs.
Standard plots for each type of sensitivity analysis can be shown.
Here, for a Morris analysis, a radar plot of the indices,
and a (\(\sigma\), \(\mu_{star}\)) plot:
fig_sensitivity_reaction_forces = tool.plot_results(
tool.result,
output_names=output_names,
show=True,
save=False,
)
# And an interactive bar plot of the indices:
fig_sensitivity_reaction_forces["bar_plot"]
Out:
/home/sebastien.bocquet/PycharmProjects/vimseo/.tox/doc/lib/python3.11/site-packages/gemseo/post/dataset/plots/_matplotlib/plot.py:87: UserWarning:
This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
/home/sebastien.bocquet/PycharmProjects/vimseo/.tox/doc/lib/python3.11/site-packages/gemseo/utils/matplotlib_figure.py:59: UserWarning:
FigureCanvasAgg is non-interactive, and thus cannot be shown
/home/sebastien.bocquet/PycharmProjects/vimseo/.tox/doc/lib/python3.11/site-packages/gemseo/utils/matplotlib_figure.py:59: UserWarning:
FigureCanvasAgg is non-interactive, and thus cannot be shown
Total running time of the script: ( 0 minutes 1.735 seconds)
Download Python source code: plot_example_SensitivityTool_StraightBeamModel.py
Download Jupyter notebook: plot_example_SensitivityTool_StraightBeamModel.ipynb
